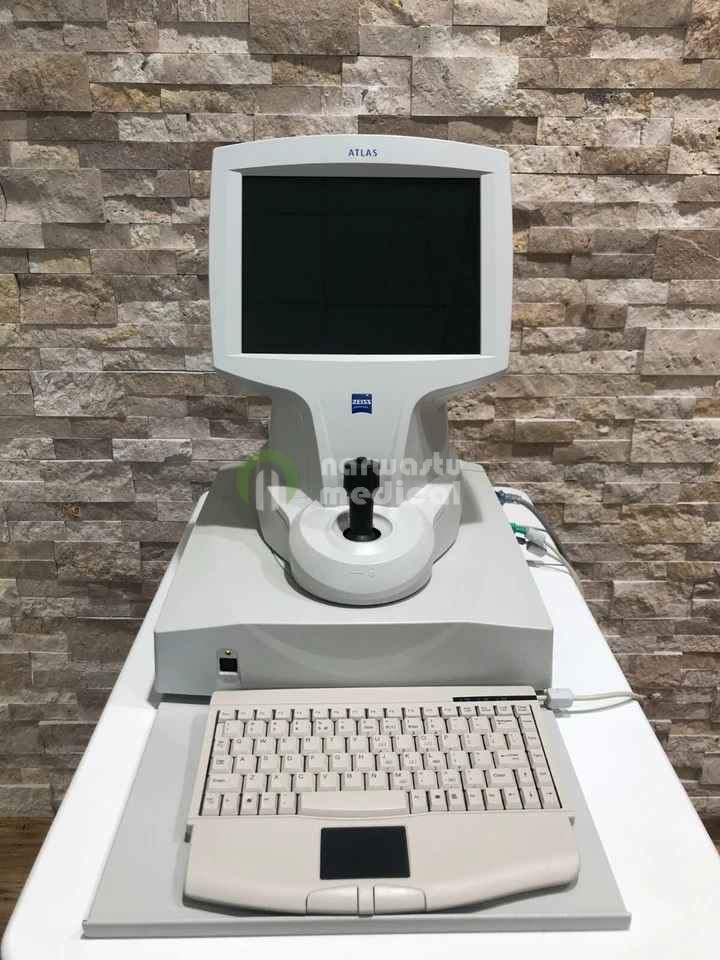

Carl Zeiss Atlas 9000 Topographer

Product Description

ON SALE Carl Zeiss Atlas 9000 Topographer with Keyboard and Windows 10. This unit is in excellent mechanical and cosmetic condition.

• Working Distance: 70 mm
• Field of View: 17 mm X 14.5 mm
• Placido Rings: 22 (18 superiorly, 22 inferiorly)
• Illumination Source: Non-visible infrared (950 nm) LED
• Optics: Digital CMOS camera with 1280×1024 pixel resolution
• Curvature
  • Measurement Range: 15 to 95 D (3.5 to 22.5 mm)
  • Accuracy: ± 0.05 D (± 0.01 mm)
  • Reproducibility: ± 0.10 D (± 0.02 mm)
• HVID (white to white)
  • Measurement Range: 10.0 to 14.0 mm
  • Resolution: 0.1 mm
• Pupillometry
  • Acquired Images: Scotopic and photopic (700 nm)
  • Measurement Range: 0.5 to 11.0 mm
  • Resolution: 0.1 mm
• Views
  • Axial Curvature
  • Tangential Curvature
  • Elevation (Best-Fit Sphere)
  • Irregularity (Best-Fit Ellipsoid)
  • Videokeratoscopic (Rings, Scotopic, Photopic)
  • Keratometry
  • Refractive Power
  • Mean Curvature
  • Corneal Wavefront
  • Image Simulation
  • Point Spread Function (PSF)
  • Modulation Transfer Function (MTF)
• Electrical: 100-240V~: 50/60Hz, 2-1A
