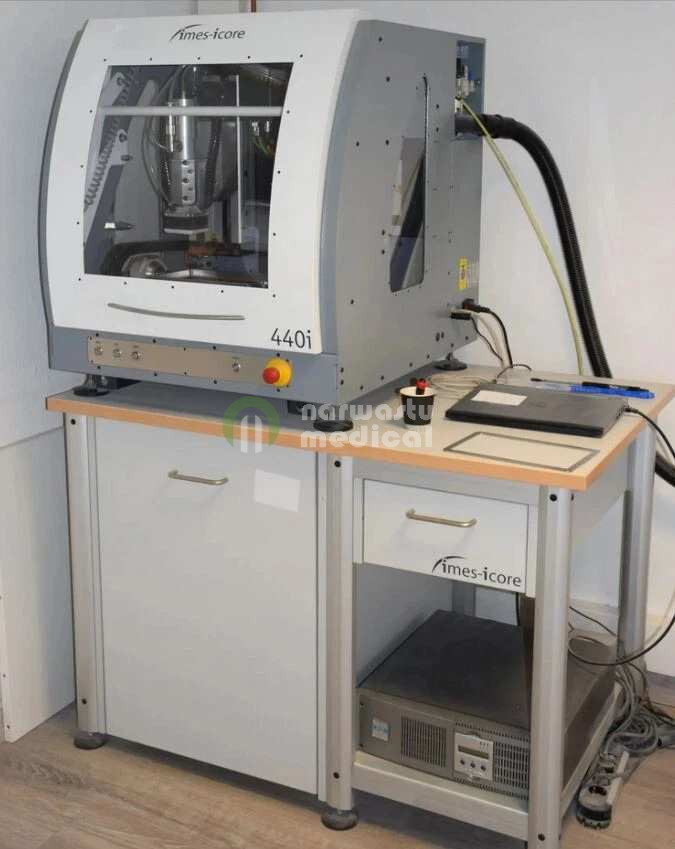

IMES-ICORE CORiTEC 440i Dental Milling Machine

Product Description

ON SALE IMES-ICORE CORiTEC 440i Dental Milling Machine with PC and software. This unit is in very good condition and all components are working very well.

The imes-icore CORiTEC 440i is a high-performance 4-axis (with up to 30° axis orientation) dental milling system designed for high-production environments, capable of wet and dry processing. It features a 100,000 rpm high-frequency spindle, an 8-fold automatic tool changer, and a 19-inch integrated PC. It is designed for processing zirconium dioxide, PMMA, wax, and plastics with high stability.

Key Technical Specifications for CORiTEC 440i :

• Axis : 4-axis machining with up to 30° axis orientation.
• Spindle : High-frequency spindle up to 100,000 rpm.
• Tool Changer : Automatic 8-fold tool changer.
• Capacity : Processing up to 90 units without disc change.
• Disc Holder : 2 integrated holders (Ø 98.5 mm).
• Materials : Zirconium oxide, PMMA, wax, plastics, and CoCr discs.
• Dimensions : 730×820×820mm(W × H × D).
• Weight : 150 kg.
• Air Pressure : Requires min. 6 bar, approx. 100 l/min.
• Controller : Integrated PC with 19″ TFT screen, Windows-based.
• Features : Tool runtime/breakage monitoring, high-precision tool length sensor, integrated suction under closed cover
