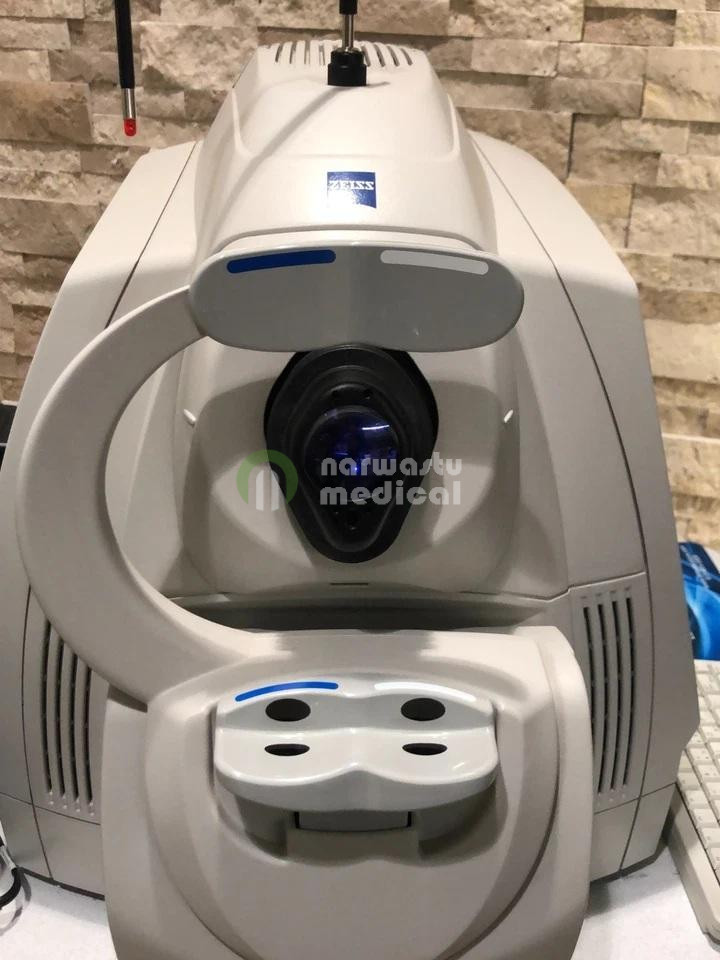

Carl Zeiss Cirrus 4000 HD OCT Ophthalmic Tomographer

Product Description

ON SALE Carl Zeiss Cirrus 4000 HD OCT Ophthalmic Tomographer HD-OCT Windows 10. This unit is in excellent mechanical and cosmetic condition.

The CIRRUS HD-OCT 4000 is equipped with top-tier resolution visualization and advanced clinical applications, including Advanced RPE analysis for monitoring retinal pigment epithelial integrity and Ganglion Cell Analysis for detecting glaucomatous damage in the macula, which might not be apparent in the peripapillary region.

Technical Data

• Smart HD Scans
  • HD 1 Line 100x : 1 Line (100x average)
  • HD 21 Line : 21 Lines (4 or 8x aver aged)
  • HD Radial : 12 Lines (8x averaged)
  • HD Cross : 10 Lines – 5 horizontal, 5 vertical (8x aver aged)
• ChamberView 15.5 mm x 5.8 mm (max.) : Anterior Chamber Depth, Angle to Angle Distance, Lens Vault, Chamber Area, Corneal Thickness, Angle and Caliper Tools
• Wide Angle to Angle 15.5 mm x 2.9 mm : Angle Opening Distance (AOD500/750), Trabecular Iris Space Area (TISA 500/750), Scleral Spur Angle, Angle and Caliper Tools
• HD Cornea 9 mm x 2 mm : Residual Stromal Thickness, Caliper Tool
• HD Angle 6 mm x 2.9 mm : Angle Opening Distance (AOD500/750), Trabecular Iris Space Area (TISA 500/750), Scleral Spur Angle, Angle and Caliper Tools
• Pachymetry Map 9 mm diameter : Sector Thickness Values, Minimum Thickness
